Dyno3mag Assembly Tutorial
The Dyno3mag is a tool intended to improve your odds of surviving a very stressful situation home defense. With all the Mag’s in your hand, less motion &steps are required to accomplish efficient Mag change outs. You will still need to practice changing out the Dyno3mag System Magazines to gain some proficiency & familiarity with it.
Please follow these simple instructions to assemble YOUR Magazines to your Dyno3mag.Use Hand Tools Only-NO POWER TOOLS!
Step-by-Step Instructions
Make sure you have all the components for your Dyno3mag assembly. You will also need 3 of YOUR magazines (NOT INCLUDED).
Align front of YOUR magazine with front of Clamp Plate. Large Radii are in front (bullet end).
Slide Clamp Plate down over YOUR magazine
The bottom of YOUR magazine should align with this Clamp Plate surface.
Slide the Clamp Plate over the body until it is firmly attached (pull upward lightly to verify).
Repeat procedure for the other 2 Clamp Plate/Magazine assemblies, making sure all 3 magazines are facing the same direction (bullet end).

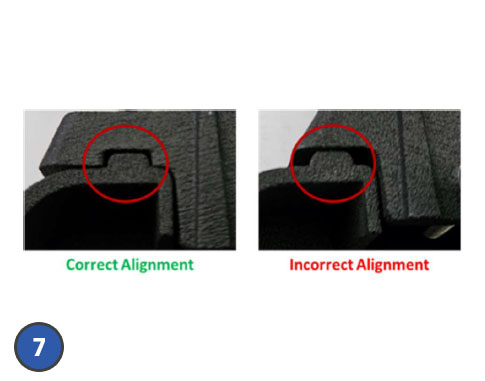

Make sure all 3 Clamp Plate notches are aligned with the body numb. If they aren't, disassemble, rotate 180°, and re-assemble.
Slide a washer onto each screw. Slide screw through 3 holes (They should go in easy. If not, press down on the Clamp Plate and repeat procedure). Then slide a washer & lock nut over the screw and secure with a 5/16" wrench or pliers. Rotate the Phillips head screw until it firmly attached. DO NOT over torque screw, as it could damage the Clamp Plate. DO NOT USE POWER TOOLS!
Load (1) bullet into each magazine. Ensure all 3 bullets are aligned in the same direction. Then finish loading the bullets into the magazines.
Insert Dyno3mag assembly into YOUR handgun.
Image of Dyno3mag in YOUR handgun.
To change magazines, grasp the bottom of the Dyno3mag, drop the magazines, rotate forward or backwards 120° to align the next magazine. It is critical that the rotation direction you choose is ALWAYS the same. Then insert the fresh magazine into YOUR handgun.
